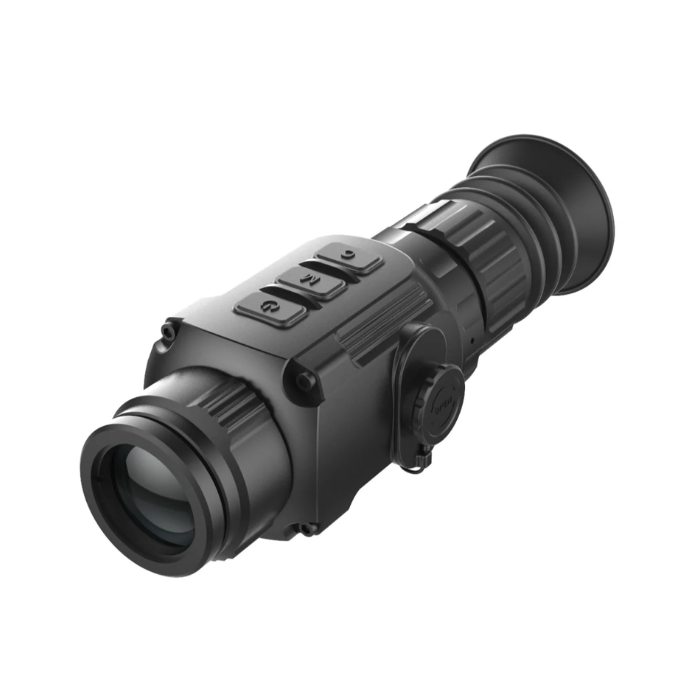

InfiRay Saim SCL25W Thermal Sight

2,095.00

  • Detection range of a human-sized object is up to 970m
  • ≤40mK NETD
  • 384×288 detector resolution
  • 1280×960 LCOS screen
  • Picture-in-Picture function
  • Ultra-Clear mode
  • Long battery life
InfiRay Saim SCL25W Thermal Sight 2,095.00

Free worldwide shipping on all orders over 200€

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

The Saim series SCL25W is a thermal device, which can be mounted on various firearms for night hunting and target observation. It’s compact size and lightweight design makes it easy to carry. SCL25W mounts directly onto picatinny rails. What makes it outstanding is it’s long operation hours, good concealment and great ability to detect, recognize and identify objects. The Saim series SCL25W is effective at close and long ranges irrespective of light and harsh weather conditions, that is, in total darkness, through heavy smoke, haze, fog, and dust.

High Image Quality

Built-in InfiRay detector is matched with Matrix III powerful algorithm, designed to increase imaging clarity and overall image detail. Matrix III brings in a sharper, more detailed field of view and enhanced object identification capabilities. The Saim series provides high image quality, improving the image contrast automatically, strengthening the image hierarchy to find targets faster.

User-Friendly Interface

Being simple and easy to operate is the initial design intention of the Saim series. Full icon design, easy to understand, and translucent background design of the menu can effectively avoid vision occlusion. Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on the settings without losing sight of your objective.

Image Sharpness Adjustment

Image sharpness can be adjusted manually to fit individual preferences for high quality image, and there are four options by pressing the menu key.

Ultra-Clear Mode

Ultra-clear mode is made specifically for bad weather conditions, such as heavy fog and raining, that makes SCL25W to be more sensitive and get more details.

Compact and Lightweight

With reasonable layout, compact structure and light weight, the Saim series is more comfortable and convenient for outdoor use.

Built-in Video Recorder and Wi-Fi Connection

The SCL25W is equipped with a recorder, which enables video shooting and image capturing at the time of observation. 16 GB internal memory can store about 20,000 pictures. Video and photo files saved in the internal memory storage can be transferred to a computer via wired connection or to a phone using Wi-Fi. The Wi-Fi hotspot of the product supports simultaneous connection of up to four devices.

Picture-in-Picture Function

Picture-in-Picture improves accuracy by providing a 2x magnified image of the reticle area at the top of the display. It helps to magnify the target while retaining the rest of the field of view visible.

Additional information

Weight 0.38 kg
Brand

Infiray

Thermal sensor resolution

384×288

Pixel pitch, μm

17

NETD, mK

≤40mK

Refresh rate, Hz

50Hz

Minimum magnification

1.4x

Maximum magnification

5.6x

Diopter range, D

-5 ~ +5

Aperture

Lens Diameter, mm

25mm

Field of view, m

Field of view, º

14.9° × 11.2°

Eye relief, mm

40mm

Detection range, m

970

Recognition range, m

230

Display type

LCOS

Display resolution

1280×960

Colour palettes

Wi-Fi

Yes

Image capture

Yes

Video recording

Yes

Microphone

Yes

Internal memory size, GB

16

IP rating

IP67

Working temperature range, ºC

-20℃ ~ +50℃

Max. recoil power on rifled weapons

6000 joules

Mounts

Picatinny/Weaver

Power supply

CR123 x2

Battery life, h

8h

Rangefinder

No

Max. measuring range, m

Measuring error range, m

Package contents

Thermal device, Type-C cable, device bag, wrist band, battery charger, microfiber cleaning cloth, user manual
