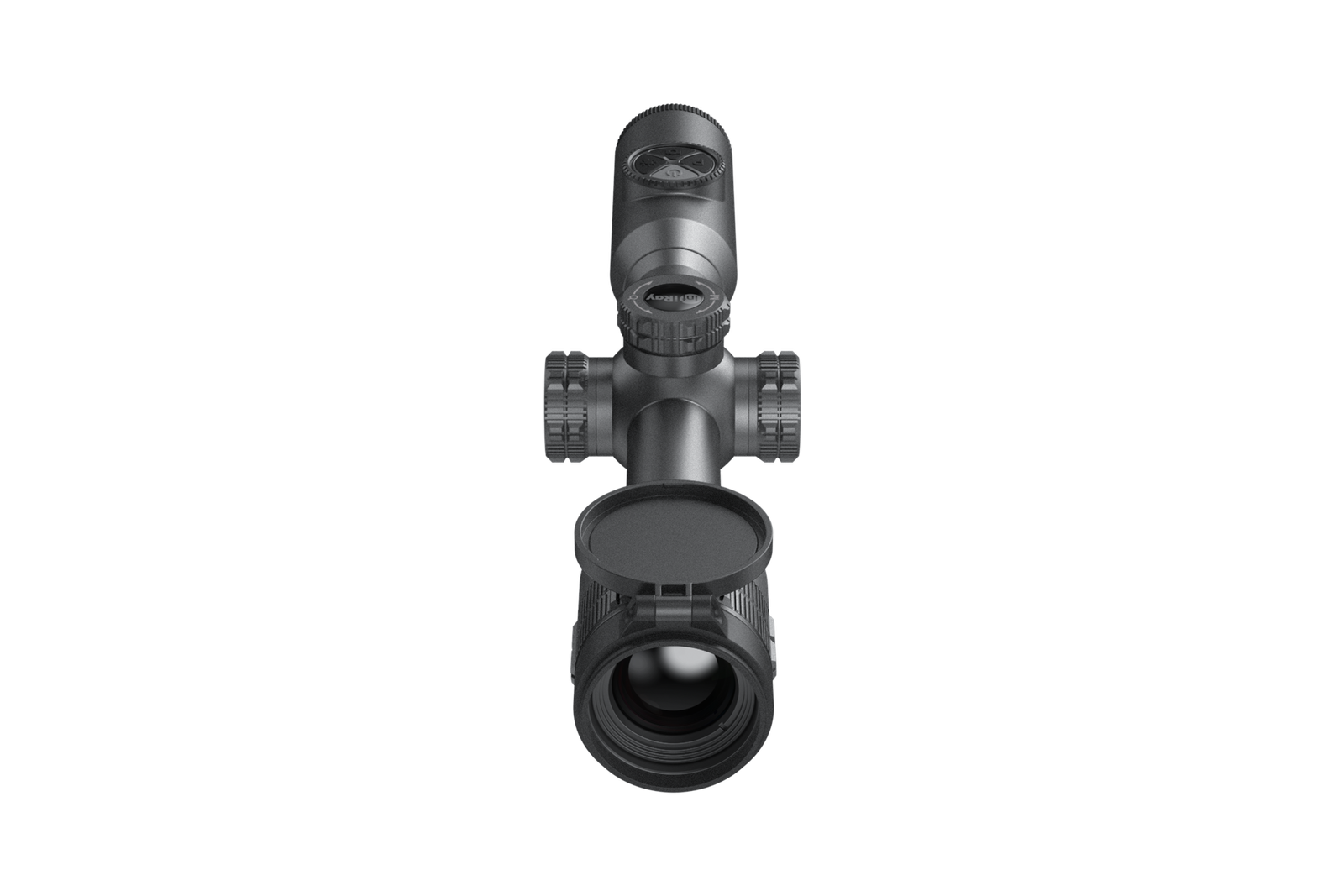

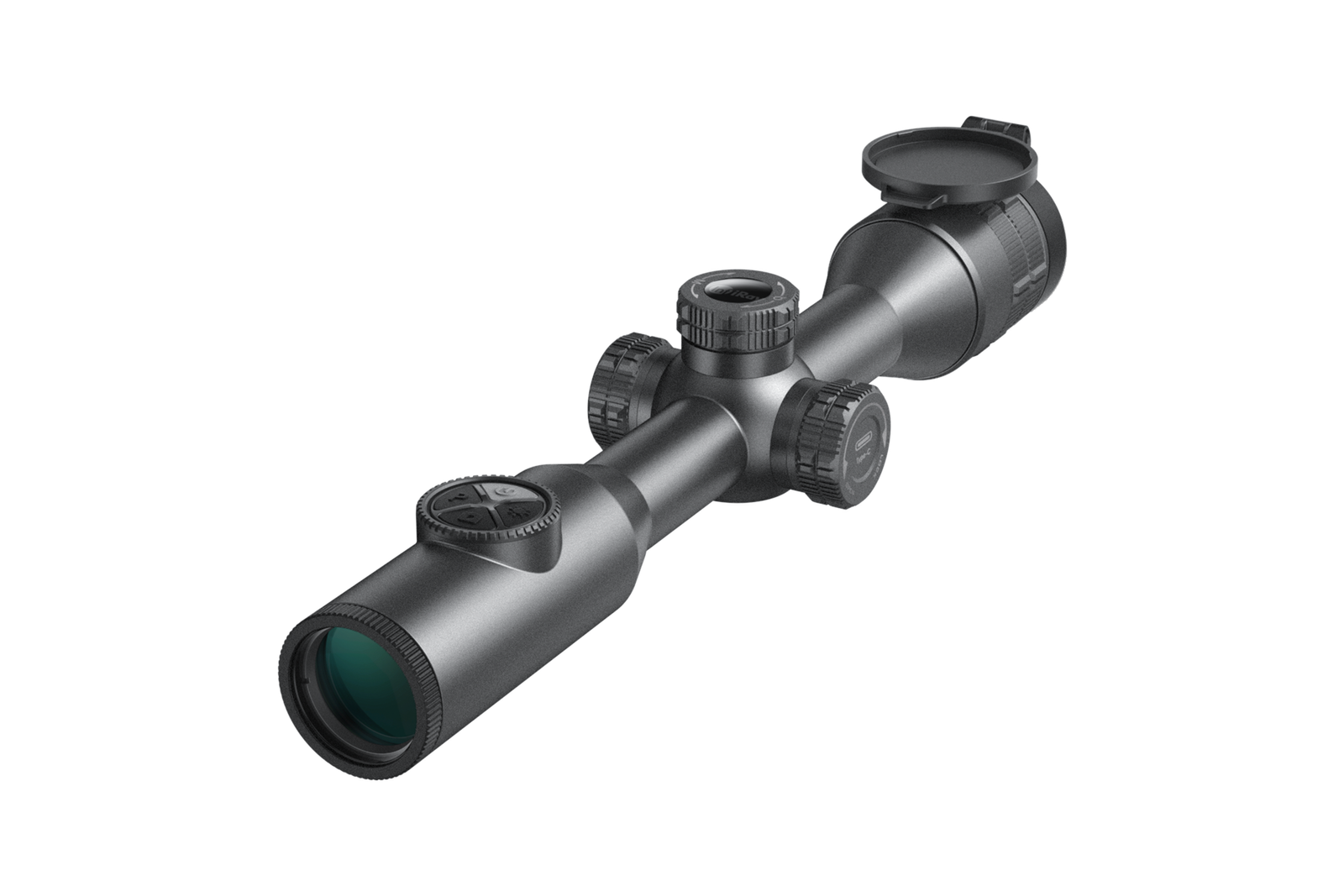

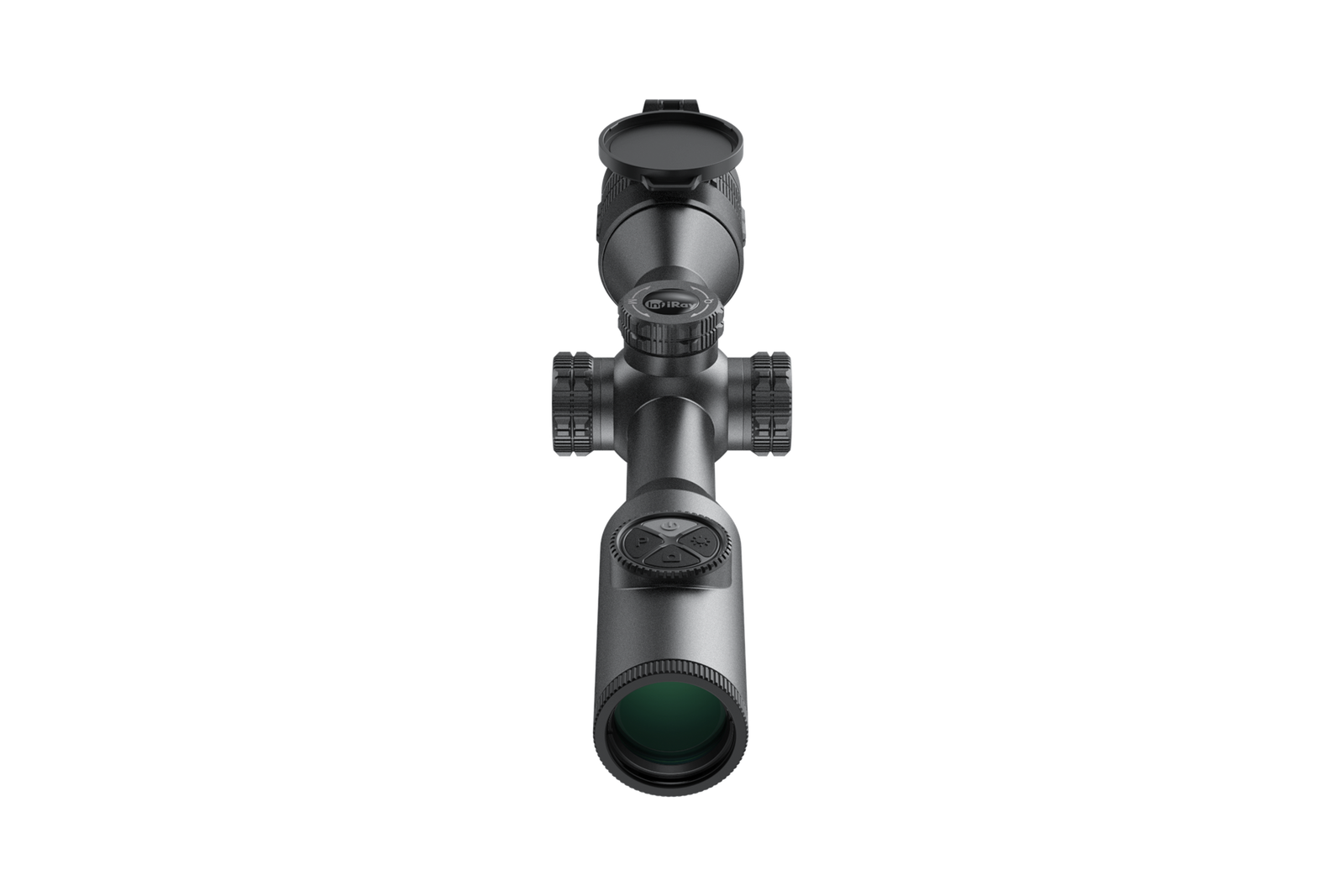

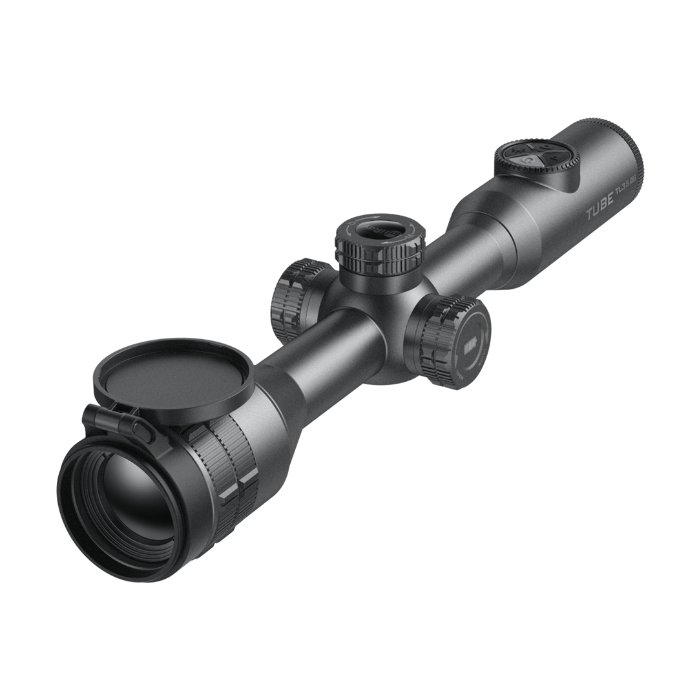

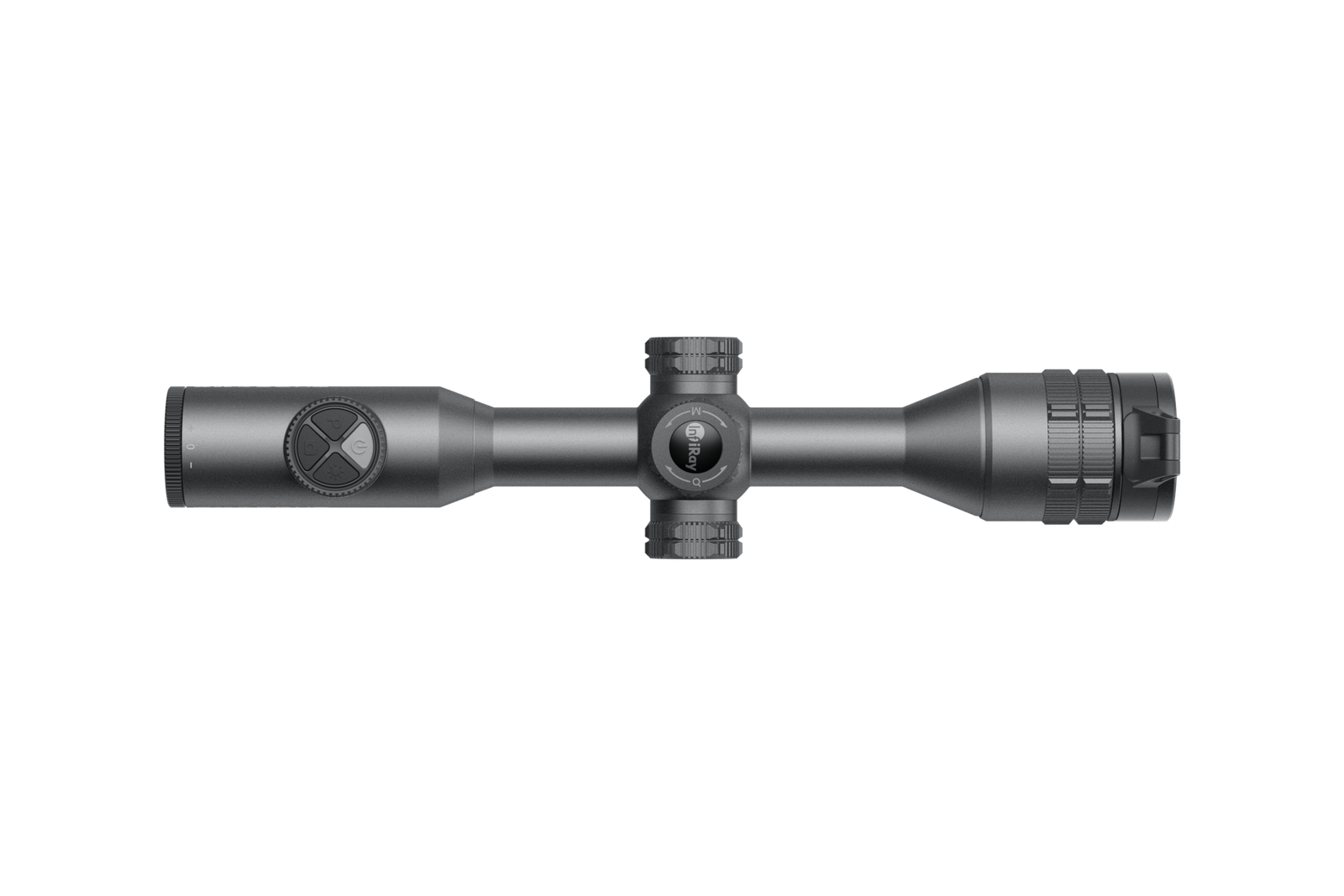

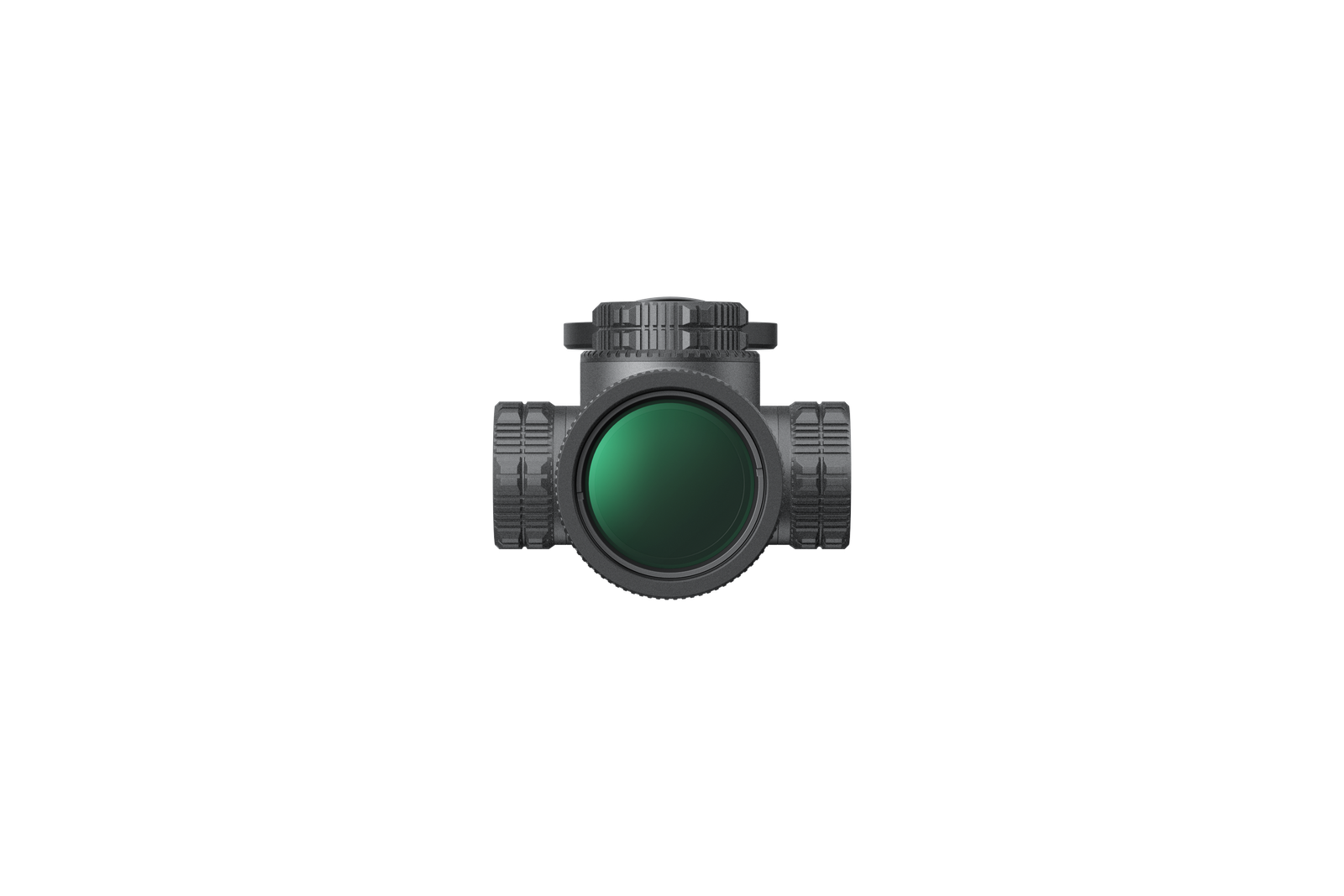

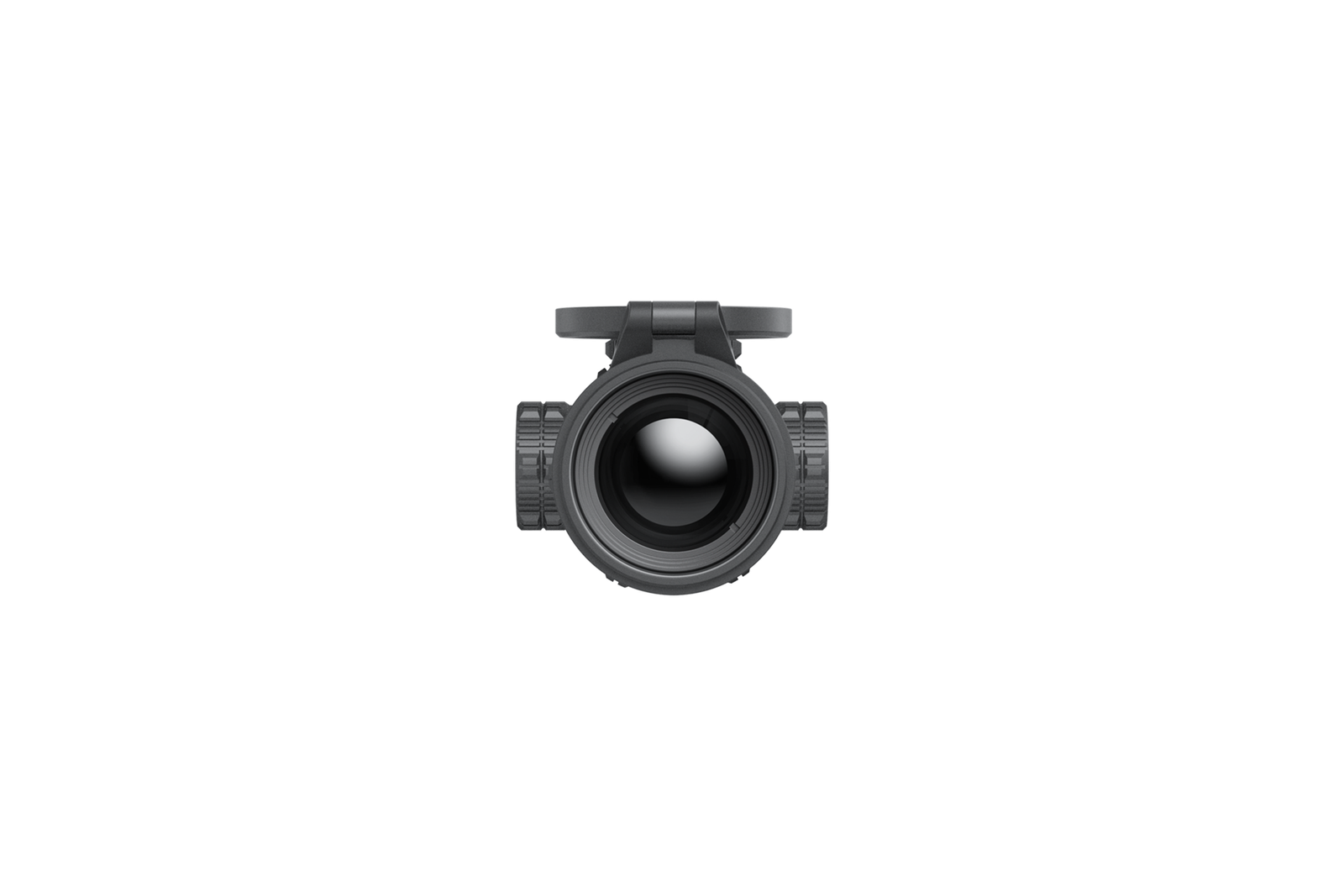

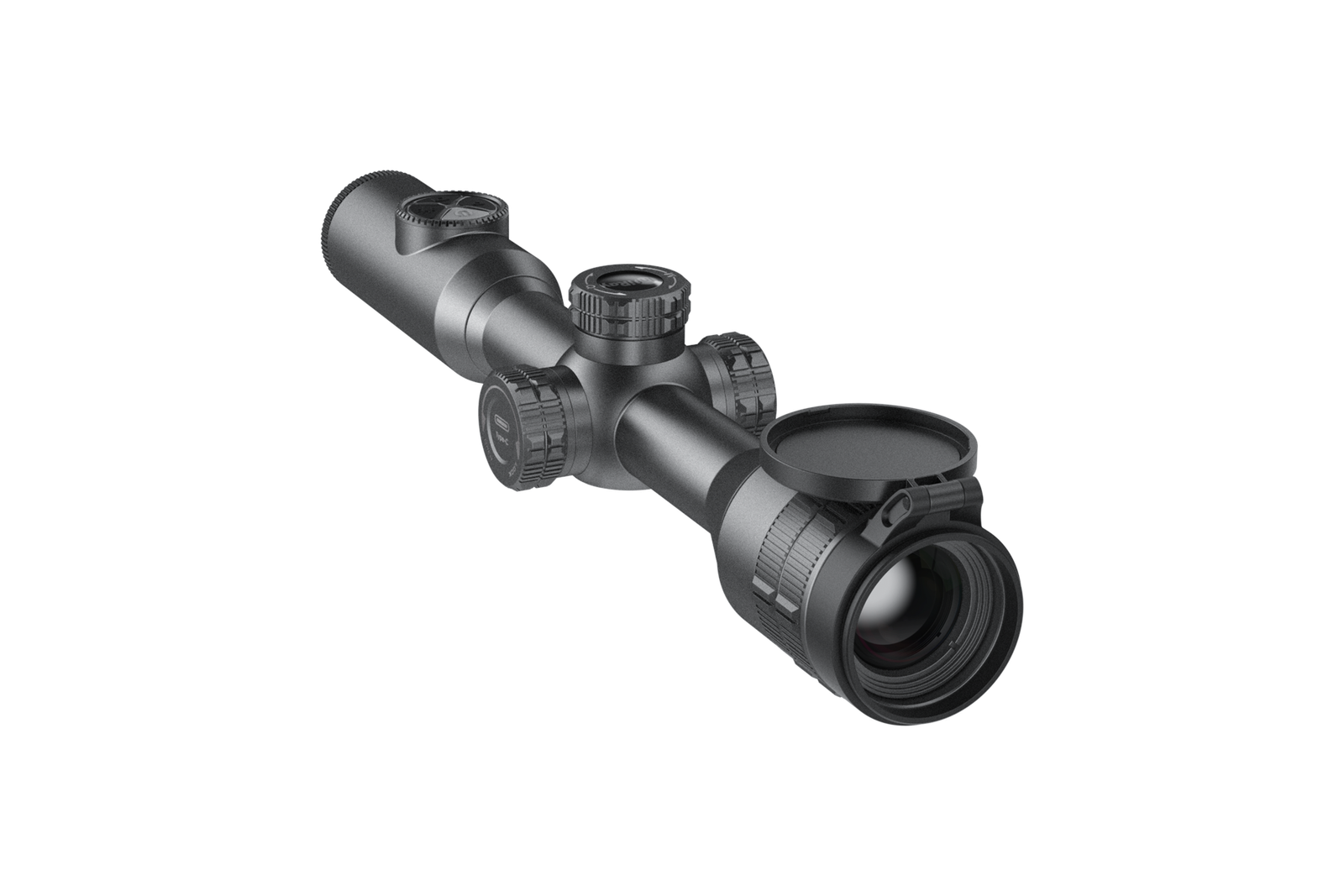

InfiRay Tube TL35 V2 Thermal Sight

2,895.00

  • Detection range of a human-sized object is up to 1800m
  • ≤40mK NETD
  • 384×288 detector resolution
  • 1024×768 AMOLED screen
  • Picture-in-Picture function
  • Long battery life
  • Traditional day time scope design
InfiRay Tube TL35 V2 Thermal Sight 2,895.00

Free worldwide shipping on all orders over 200€

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

The Tube Series TL35 V2 was designed from the ground up for optimal use on bolt action rifles and other platforms that demand flexible mounting options with increased eye relief. The traditional style housing allows for mounting with standard 30mm rings like a typical day scope.

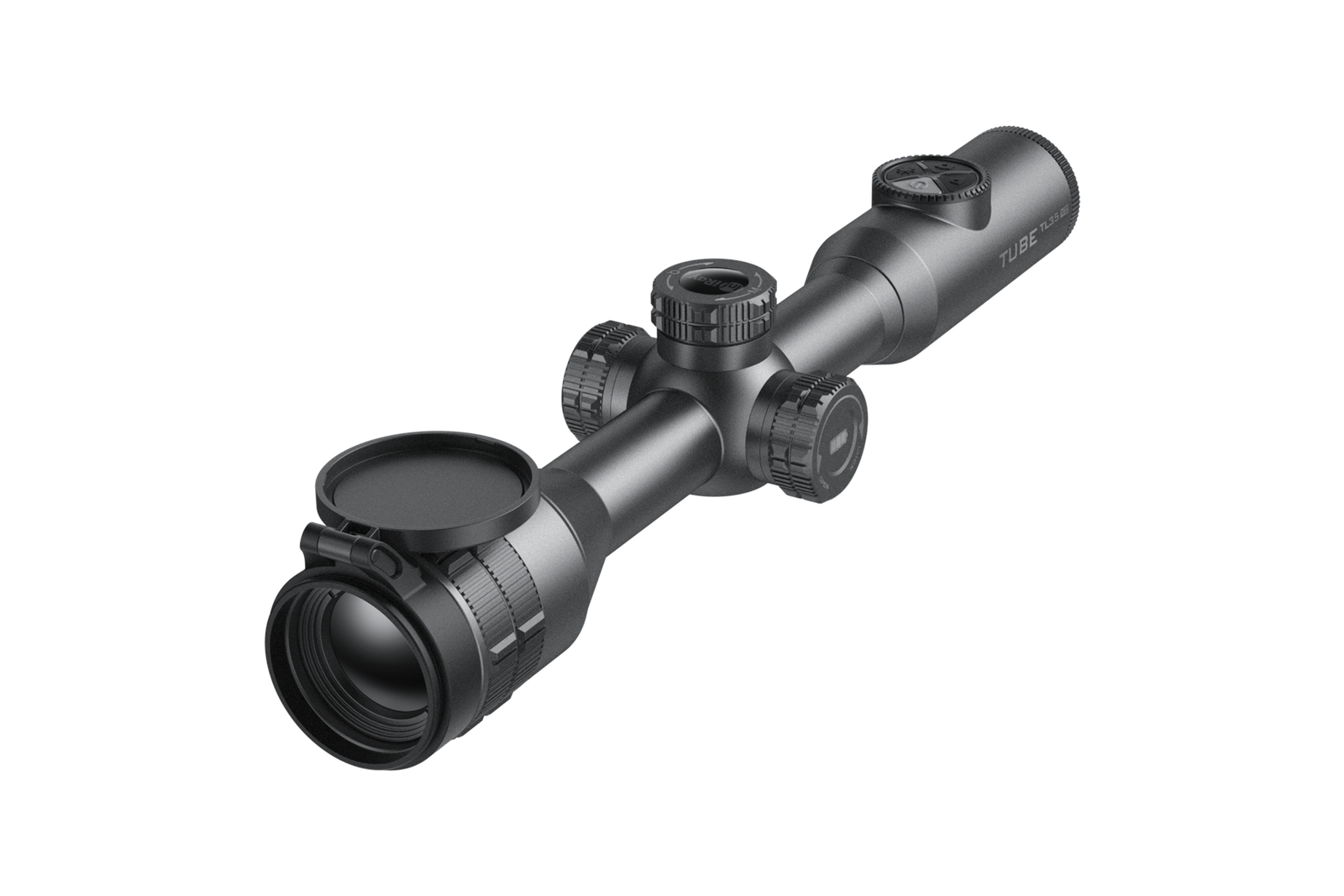

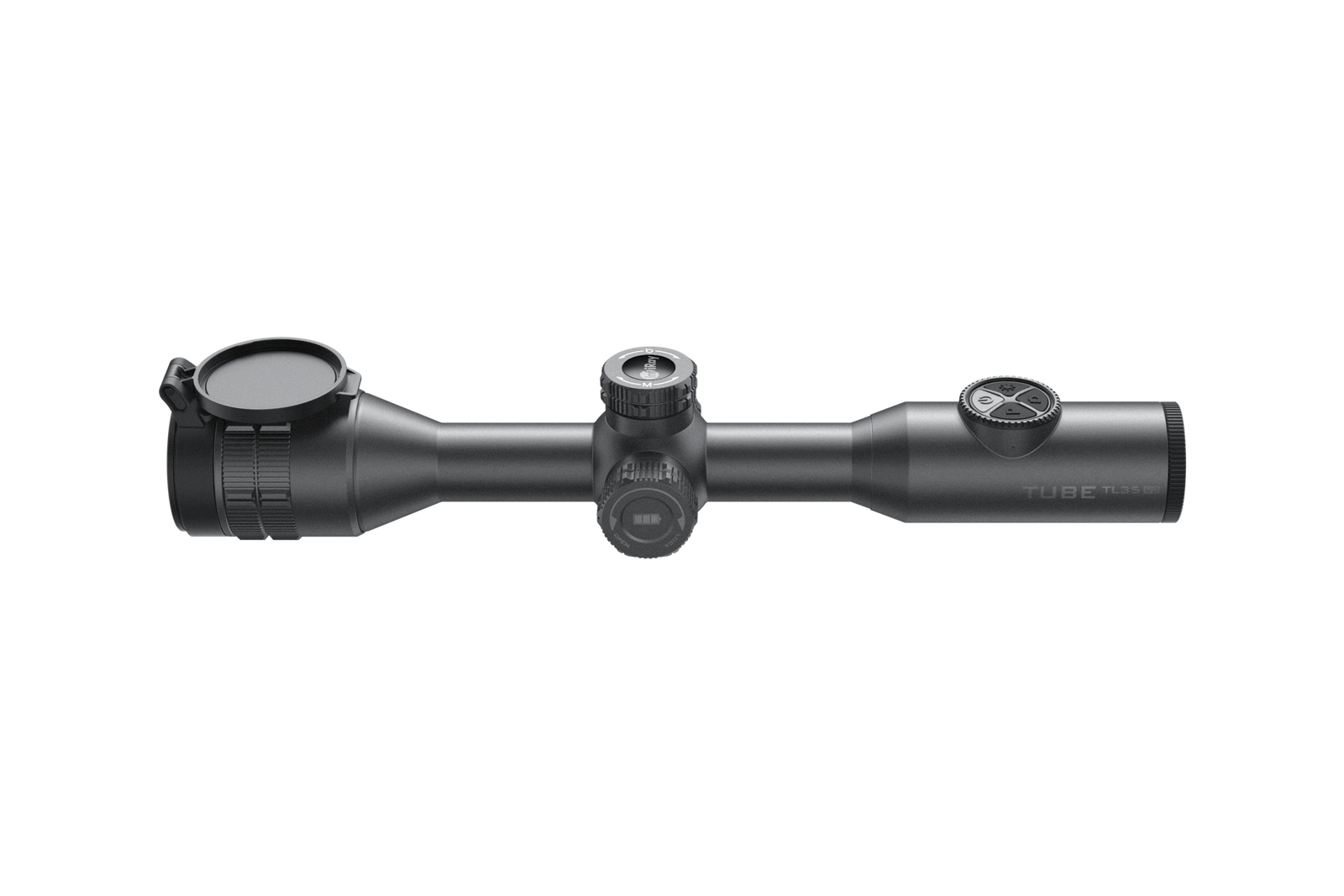

The Appearance Of A Traditional Day Scope

The clarity is redefined with the 1280 detector. The image keeps incredible detail even at full 12x zoom, which 640 detectors cannot provide.

1024X768 AMOLED Display

TL35 V2 adopts a 1024×768 AMOLED display instead of a 1280×960 LCOS display of TL35. The imaging quality will be improved a lot and the display will offer better layers and contrast.

Built-in Microphone (upgraded)

TL35 V2 is equipped with a microphone function, so that customers can record the voice when recording.

12 μm Pixel Pitch

Featuring the self-researched, high-performance, 12μm detector, TL35 V2 is able to provide high quality, detailed images.

Sufficient Operation Time and Flexible Battery Choice

The working time of built-in battery is up to 12 hours, and the replaceable 18500 battery will provide an additional 3 hours of operation.

Detection Range, m (Target size: 1.7m×0.5m, P(n)=99%)

Combining the extraordinary sensor and the powerful optics, TL35V2 can achieve the detection range of up to 1800m.

32 GB Internal Memory

TL35 V2 comes with 32 GB of memory for storing 57,000 images or 48 hours of video. Captured videos and images can be easily transferred to your smartphone at lightning speed via app.

Ultra-Clear Mode

Built-in Ultra-Clear mode is designed for bad weather conditions, such as heavy fog and rain. It will make the Tube series more sensitive and capable of providing more details.

Additional information

Weight 0.95 kg
Brand

Infiray

Thermal sensor resolution

384×288

Pixel pitch, μm

12

NETD, mK

≤40mK

Refresh rate, Hz

50Hz

Minimum magnification

3x

Maximum magnification

12x

Diopter range, D

-4 ~ +4

Aperture

F/1.1

Lens Diameter, mm

35mm

Field of view, m

13.1 × 9.9m @100m

Field of view, º

7.5° × 5.6°

Eye relief, mm

70mm

Detection range, m

1800

Recognition range, m

460

Display type

AMOLED

Display resolution

1024×768

Colour palettes

Wi-Fi

Yes

Image capture

Yes

Video recording

Yes

Microphone

Yes

Internal memory size, GB

32

IP rating

IP67

Working temperature range, ºC

-20℃ ~ +50℃

Max. recoil power on rifled weapons

6000 joules

Mounts

Standard 30mm rings

Power supply

Built-in battery / 6600mAh + replaceable 18500 battery / 3.7V

Battery life, h

15h

Rangefinder

No

Max. measuring range, m

Measuring error range, m

Package contents

Thermal device, Type-C cable, device bag, wrist band, battery charger, microfiber cleaning cloth, user manual
